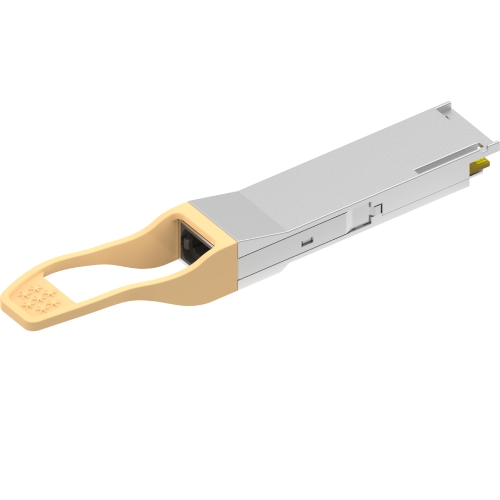

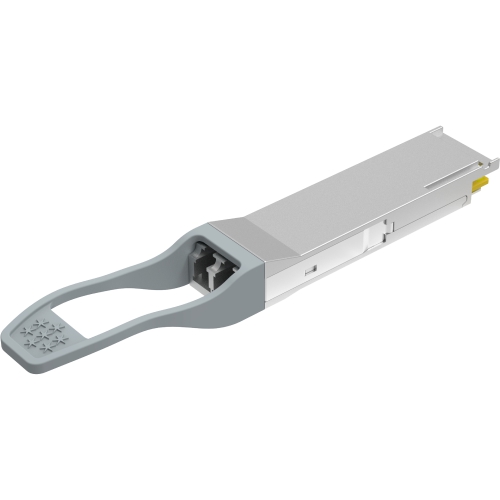

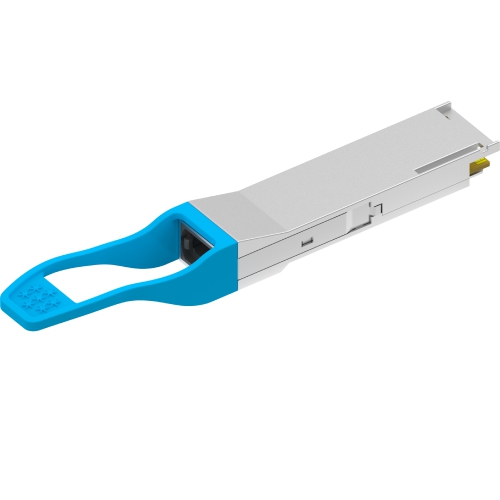

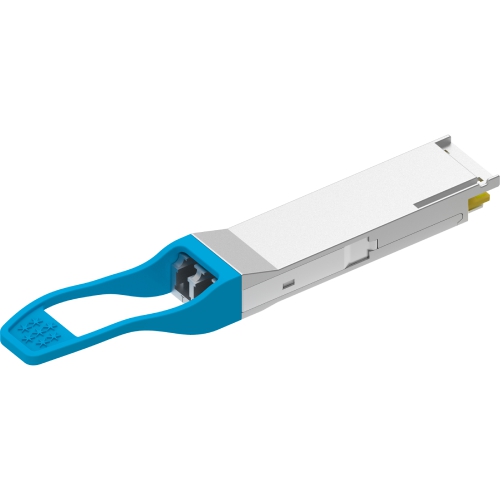

Name:40G QSFP+ DML CWDM4 40km

Hot-pluggable QSFP+ form factor full-duplex transceiver module

4-channel uncooled CWDM DML transmitter and APD receiver

Data rate up to 11.15Gbps per channel

Compliant with QSFP+ MSA (SFF-8436) and IEEE 802.3bm 40GBASE-ER4

Compliant with OTN OTU3/OTU3e1/OTU3e2

Reach up to 40km over SMF

18.5 dB link insertion loss budget

Duplex LC receptacle

XLPPI electrical interface

3.5W maximum power dissipation

Case operating case temperature range: C-Temp or I-Temp

Single 3.3V power supply

Built-in digital diagnostic functionality

RoHS compliant (lead-free)

40G QSFP+ ER4 CWDM4 40km Transceiver
